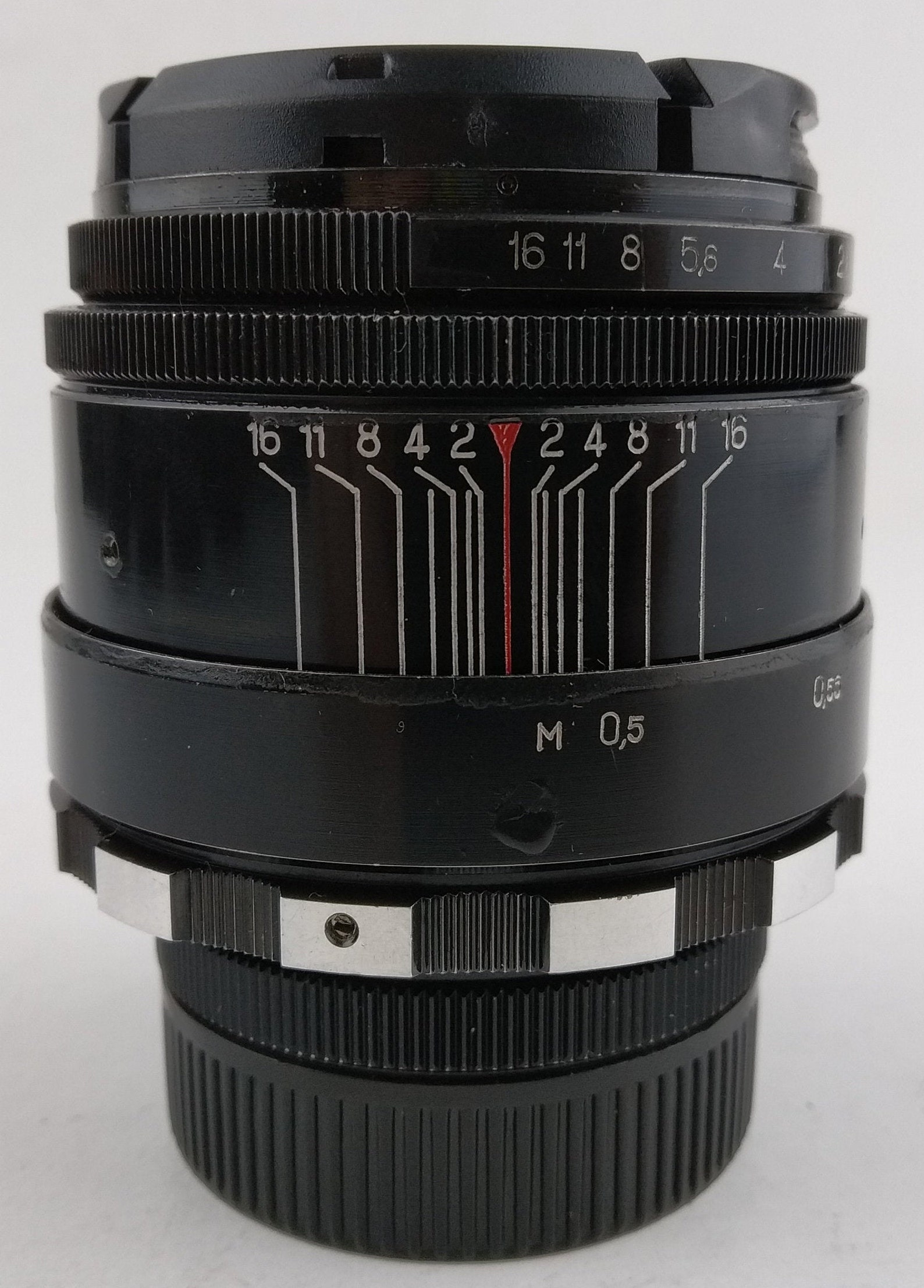

↑ For photo series see discussion thread for this image.Sample images taken with a Helios-44 Type Type 2cii mounted on a Nikon D800 Lens Bezel inscriptions of KMZ-produced Helios-44 f/2 58mm KMZ-produced Helios-44 f/2 58mm Type 2cii Images by Dirk HR Spennemann ( Image rights) KMZ-produced Helios-44 f/2 58mm for Start SLR Type 2e-bezel text "2/58" and black front bezel ring, 8-blade diaphragm, produced by MMZ until the mid 1960s Type 2ei- Cyrillic labelling, sn 50xxxxx–60xxxxx Type 2eii- Latin labelling, engraved "Made in USSR,' sn 50xxxxx–60xxxxx Helios-44-2 ( M42) Type 1- pre-set lens with bezel text "2/58" and the 'silver' front bezel ring produced by Valdai Type 1a- Cyrillic labelling Type 1b- Latin labelling Type 2- pre-set lens with bezel text "2/58" and the 'silver' front bezel ring produced by MMZ Type 2diIi-Latin labelling, engraved "Made in USSR'. Type 2di-Cyrillc labelling, Type 2di-Cyrillc labelling, engraved "Made in USSR'.
Type 2d-bezel text "2/58" and 'black' front bezel ring, 8-blade diaphragm, produced by KMZ until the late 1950s, sn 024447x– Type 2ci- Cyrillic labelling Type 2cii-Latin labelling Type 2ciii-Latin labelling, engraved "Made in USSR'. Type 2c-bezel text "2/58" and 'black' front bezel ring, 13-blade diaphragm produced by KMZ until the late 1950s, sn –0225xxx Type 2a-bezel text that spells out '1:2 F=5,8cm' with a Cyrillic P ( Π) in red, and a silver front bezel ring, sn 0016xxx Type 2b-bezel text "2/58" and the 'silver' front bezel ring produced by KMZ Type 2bi- Cyrillic labelling, ring, sn 0073xxx– Type 2bii-Latin labelling Type 2biii-Latin labelling, engraved "Made in USSR'.
Aperture selection with f-stops increasing in clockwise motion. Moreover, the lens for the Start lacks the preset function of the other early models. Mechanically, the Helios lens for the Start SLR differs from all other Helios-44 lenses inasmuch as the focussing ring is up front and the aperture selector at the rear. Observed have been N and Nº, whereby the 'N" appears on some of the earlier models.
#Helios lens wiki serial number
Ġxxxxxx reserved for factory syndicat leaders.Īll lenses with a '0', '00' and '000' prefix reputedly underwent higher quality control.Īdditional variations exist in the representation of the serial number prefixes.
#Helios lens wiki serial numbers

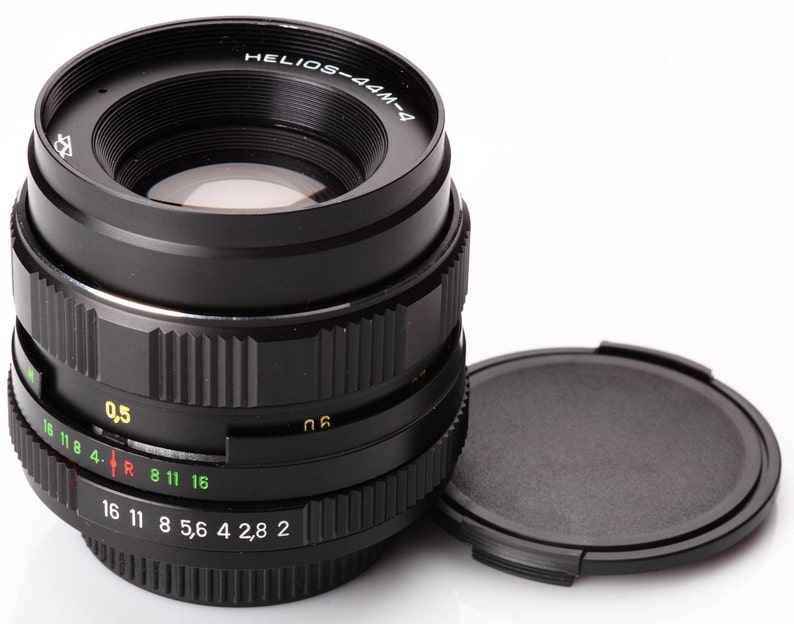

Reputedly, the serial numbers of the early Helios lenses are structured according to the following pattern: Ġ00xxxx factory test (study) models, prototypes etc.Ġ0xxxxx models reserved for members of the communist party and other "VIPs". The early Helios lenses are housed in aluminium barrels. Typology of the silver-barrelled Helios-44 lenses (early versions) In the table below, the arrow ← indicates the direction the aperture control ring needs to be turned to increase the ƒ-stops. The arrangement of the focussing helicoid as well as the aperture selector ring differs between models. The nomenclature of all bar the first (silver-cased) Helios lenses follows the formula 'Helios-44X-N', where X -is the index of lens mount (M for M42 thread, K for Pentax K bayonet, Д for Zenit-D bayonet) and N is a optical resolution index 2, 3, 4, 5, 6, 7 (the higher number the higher is an optical resolution of lens).įocal Distance: 58mm (may vary in reality). Helios-44 is has a strong aberration at the margins, resulting in a characteristic 'swirl' which is reminiscent of Petzval lenses. The Helios-44 f/2 58mm is a 6-element anastigmat, which over the duration of its production was available in both single-coated and multi-coated versions. The lens is based on the Carl Zeiss Biotar f/2 58mm design. The Helios-44 is it is considered to be one of most mass-produced lenses in the world. Helios-44 (Гелиос-44) is a series of standard lenses for SLR cameras, produced from 1949? until 1992 (2001?) in the Soviet Union by KMZ, MMZ, and by Valdai. Image by Dirk HR Spennemann ( Image rights) 1.2 Typology of the silver-barrelled Helios-44 lenses (early versions).
